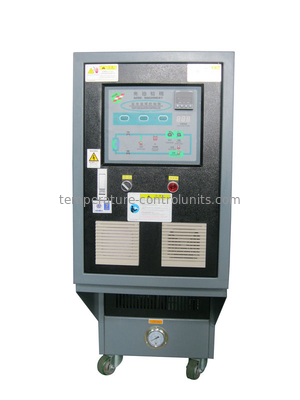

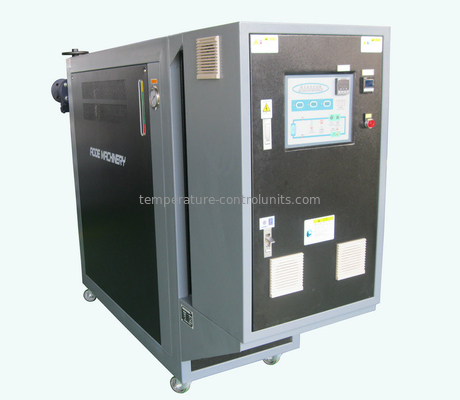

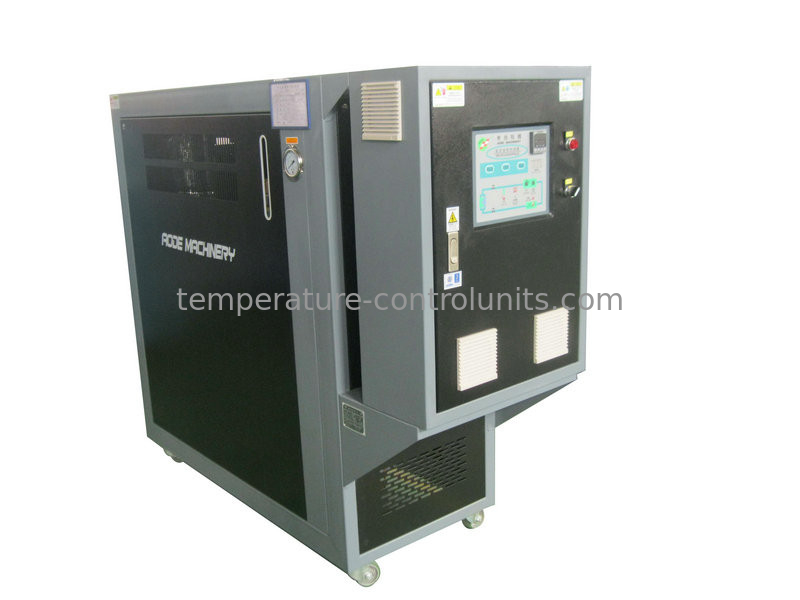

Industrial Mould Temperature Controller

Industrial Mould Temperature Controller

Quick Detail:

1. Certification:CE & ISO

2. Explosion-proof device(optional)

3. Customizable horsepower and heating power of water pump

4. Pump pressure:2.2Kg/cm2

5. Pump power: 2.2KW

6. Alarm function:Pump reversal/water shortage/overheating/overload

7. Warranty:1 year

Description:

• Explosion-proof equipment(optional)

• Thermometer for return water

• Function for forced cooling(optional)

• High-strength cooling capacity

• Automatic air-exhausting function after startup

• Switchover of heating power

• RS485 communication function for automated management(optional)

• Instant cooling shut-down function(optional)

• BY-PASS pressure release loop for hot water

• Carbon black resistant isolated electric box(optional)

• Customizable multi-point temperature control unit

• Customizable horsepower and heating power of water pump

• Direct cooling or indirect cooling(optional)

• Brands OMRON, FUJI, TE.LG, MOELLER, ABB and WEST for electric appliances

• Range of temperature control:+15℃-98℃ for incoming water

• Stainless steel integrated pipelines for less pipe resistance and rust

• Control mode: Imported microcomputer or PLC(optional)

• Perfect safety protection, fault display, easy repair and maintenance even without professionals

Specifications:

Competitive Advantage:

1. Customization thick copper pipe 1.0-1.2

2. Strict quality control system

3. High density heat insulation cotton and aluminum foil

4. We have the production certification organic heat transfer material heater

5. Electric appliances brands:OMRON, JUJI, TE.LG, MOLLER, ABB and WEST

6. Imported microcomputer or PLC

Applications:

Rubber, Film, Plastic, Mould making, connector, Light guide plate

Nowadays, Aode Machinery Co.,ltd continue to uphold the purpose of international standards designs and high quality products, applying ourselves to providing high standard products and whole-journey nanny service. Our products are widely applied in plastic injection molding, light guide plates, connectors, chemical engineering, compression casting, reaction kettles, rubber tires, calendaring, shoe materials, printing and dyeing, drying and banburying and tec. And widely sold to Japan, America, Italy, Brazil, Southeast Asia, Africa and etc. The brand recognition from the market is sufficient to prove that our temp. control system can replace the imported similar products. Belows are our honor clients.
