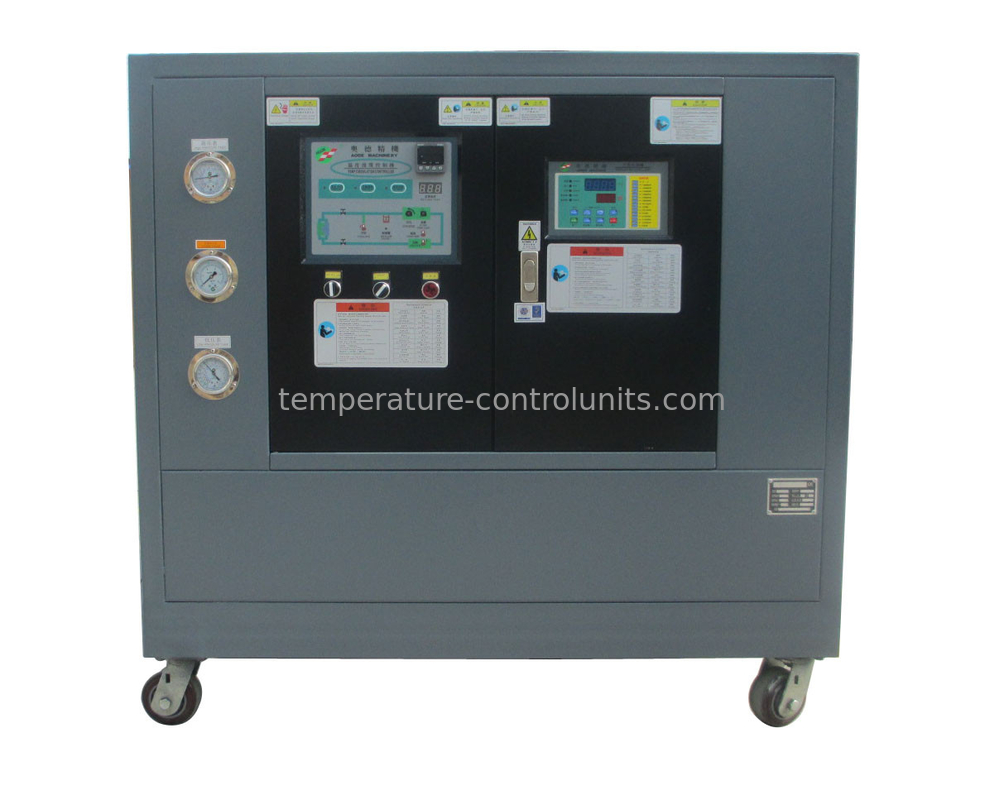

TCU Industry Plastic Mold Temperature Controller With CE / ISO

TCU Industry Plastic Mold Temperature Controller With CE / ISO

Quick Detail:

1. Refrigerating capacity:8251Kcal/h

2. Range of temperature control:3℃-98℃

3. Certification:CE & ISO

4. Compressor type: Totally closed vortex type or piston type

5. Compressor power: 2.25KW

6. Heating energy:6KW

Description:

• Compressor head imported from Europe and USA

• Oxygen-free welding for copper pipes

• RS485 communication function for automated management(optional)

• Switchover of heating power

• Stainless steel integrated pipelines for less pipe blockage and rust

• Imported quality parts for longer service lives

• Brands OMRON, FUJI, TE and LG for electric appliances

• Control mode: imported microcomputer or PLC(optional)

• Perfect safety protection, fault display, easy repair and maintenance even without professionals

• High-efficiency evaporator and condenser which can save energy by more than 30%

• Two groups of compressor heads(used separately or jointly) for C-20

• Range of temperature control:+5℃-98℃ for incoming water

Specifications:

Competitive Advantage:

1. Our core competitiveness:advance technology,the pioneer of TCU industry, Convenient and efficient nationwide service network

2. Customization thick copper pipe 1.0-1.2

3. Our core concept:Innovation, high-quality, integrity, service, focus

4. High density heat insulation cotton and aluminum foil

5. Electric appliances brands:OMRON, JUJI, TE.LG, MOLLER, ABB and WEST

6. The thickness of our machine rack is 1.2mm.

7. Strict quality control system

8. We have the production certification organic heat transfer material heater

Applications:

Print, electroplate

Hot Rolling Machine: Calender Rolls, Wood Presses, Laminating Presses,Molding Presses, Rubber Presses, Jacketed Vessels, Reactors, Heat Exchangers, Mixers, Printing Machines, Asphalt, Vulcanizing Presses.
Die casting,plastic  Injection molding, light guide plates, connectors, Chemical engineering, Shoe materials, Pringting and dyeing, Drying and banburying.

Nowadays, Aode Machinery Co.,ltd continue to uphold the purpose of international standards designs and high quality products, applying ourselves to providing high standard products and whole-journey nanny service. Our products are widely applied in plastic injection molding, light guide plates, connectors, chemical engineering, compression casting, reaction kettles, rubber tires, calendaring, shoe materials, printing and dyeing, drying and banburying and tec. And widely sold to Japan, America, Italy, Brazil, Southeast Asia, Africa and etc. The brand recognition from the market is sufficient to prove that our temp. control system can replace the imported similar products. Belows are our honor clients.
