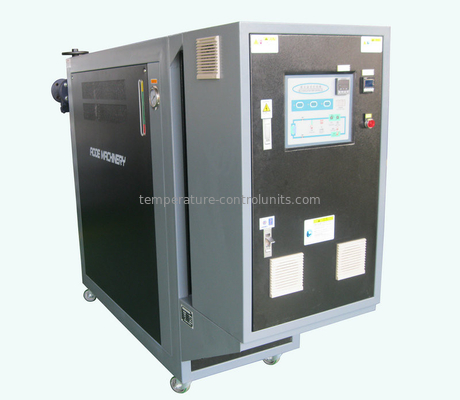

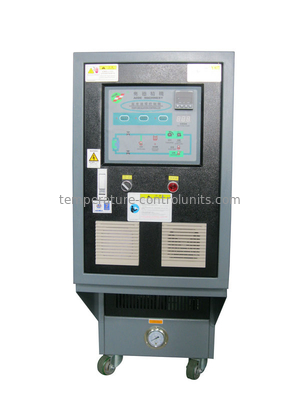

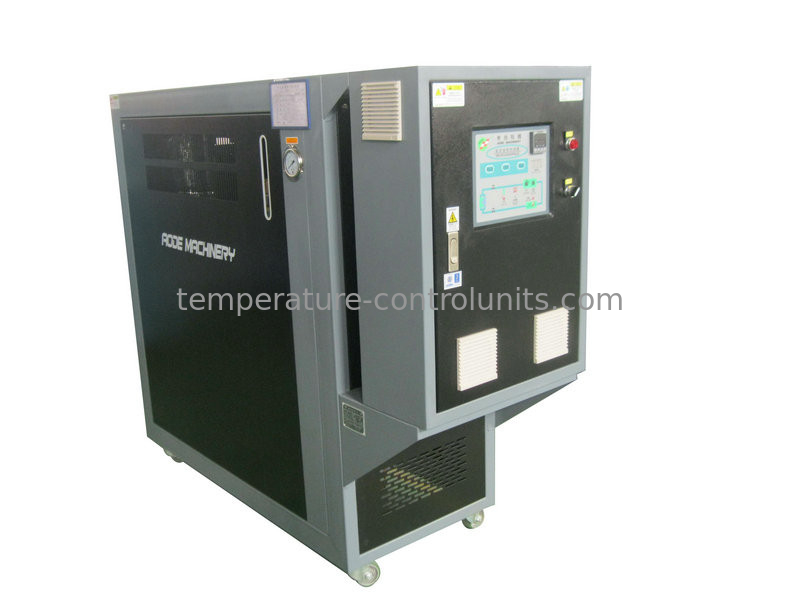

Industrial Mould Temperature Controller For Injection Machinery

Industrial Mould Temperature Controller For Injection Machinery

Quick Detail:

1. Certification:CE & ISO

2. Explosion-proof device(optional)

3. Customizable horsepower and heating power of water pump

4. Pump pressure:2.2Kg/cm2

5. Pump power: 2.2KW

6. Alarm function:Pump reversal/water shortage/overheating/overload

7. Warranty:1 year

Description:

• Explosion-proof equipment(optional)

• Thermometer for return water

• Function for forced cooling(optional)

• High-strength cooling capacity

• Automatic air-exhausting function after startup

• Switchover of heating power

• RS485 communication function for automated management(optional)

• Instant cooling shut-down function(optional)

• BY-PASS pressure release loop for hot water

• Carbon black resistant isolated electric box(optional)

• Customizable multi-point temperature control unit

• Customizable horsepower and heating power of water pump

• Direct cooling or indirect cooling(optional)

• Brands OMRON, FUJI, TE.LG, MOELLER, ABB and WEST for electric appliances

• Range of temperature control:+15℃-98℃ for incoming water

• Stainless steel integrated pipelines for less pipe resistance and rust

• Control mode: Imported microcomputer or PLC(optional)

• Perfect safety protection, fault display, easy repair and maintenance even without professionals

Specifications:

Competitive Advantage:

1. Customization thick copper pipe 1.0-1.2

2. Strict quality control system

3. High density heat insulation cotton and aluminum foil

4. We have the production certification organic heat transfer material heater

5. Electric appliances brands:OMRON, JUJI, TE.LG, MOLLER, ABB and WEST

6. Imported microcomputer or PLC

Applications:

Rubber, Film, Plastic, Mould making, connector, Light guide plate
