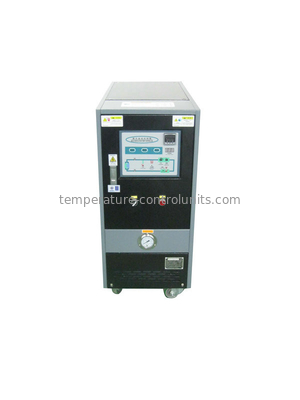

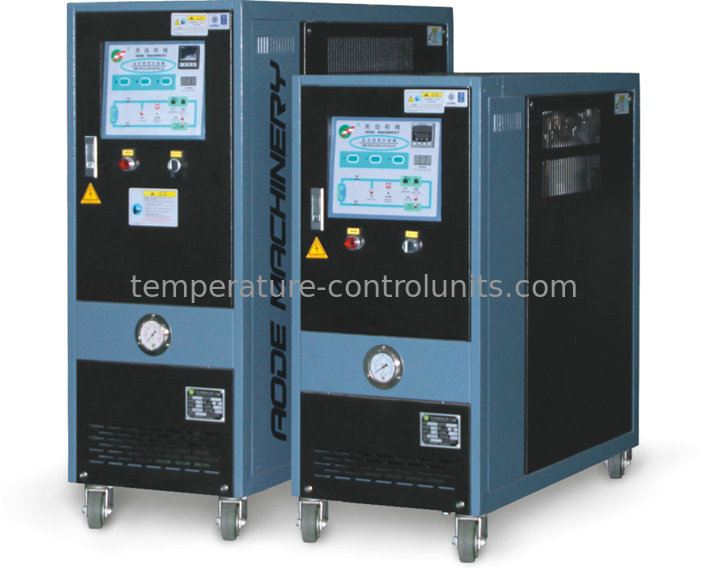

Water Mould Temperature Controller

Water Mould Temperature Controller AEWH-30 , 150 Degree

Quick Detail:

1. Explosion-proof equipment(optional)

2. Air blowing and return water function(optional)

3. Certification:CE & ROHS

4. Controller:microcomputer

5. Heating capacity: 24KW

6. Maximum power consumption: 26KW

7. Alarm function:open phase, water depletion, excess temperature, overloading, reverse turn, high voltage

Description:

• Explosion-proof equipment(optional)
• Air blowing and return water function(optional)
• Thermometer for return water
• Automatic air-exhausting function after startup
• Switchover of heating power
• RS485 communication function for automated management(optional)
• BY-PASS pressure release loop for hot water
• Customizable multi-point temperature control unit
• Customizable horsepower and heating power of water pump
• Brands OMRON, FUJI, TE, LG, MOELLER, ABB, and WEST for electric appliances
• Range of temperature control: +15℃-180℃ for incoming water
• Stainless steel integrated pipelines for less pipe resistance and rust
• Control mode: imported microcomputer or PLC(optional)
• Perfect safety protection, fault display, easy repair and maintenance even free of professionals

Specifications:

Competitive Advantage:

1. Our core competitiveness:advance technology,the pioneer of TCU industry, Convenient and efficient nationwide service network
2. Excellent R&D team
3. Customization thick copper pipe 1.0-1.2
4. Our core concept:Innovation, high-quality, integrity, service, focus
5. High density heat insulation cotton and aluminum foil
6. Electric appliances brands:OMRON, JUJI, TE.LG, MOLLER, ABB and WEST
7. The thickness of our machine rack is 1.2mm
8. We have the production certification organic heat transfer material heater

Applications:

Aluminium Alloy: Car accessories

Magnesium alloy: Communication device, navigation

Hot Rolling Machine: Calender Rolls, Wood Presses, Laminating Presses,Molding Presses, Rubber Presses, Jacketed Vessels, Reactors, Heat Exchangers, Mixers, Printing Machines, Asphalt, Vulcanizing Presses.
Die casting,plastic  Injection molding, light guide plates, connectors, Chemical engineering, Shoe materials, Pringting and dyeing, Drying and banburying.

Nowadays, Aode Machinery Co.,ltd continue to uphold the purpose of international standards designs and high quality products, applying ourselves to providing high standard products and whole-journey nanny service. Our products are widely applied in plastic injection molding, light guide plates, connectors, chemical engineering, compression casting, reaction kettles, rubber tires, calendaring, shoe materials, printing and dyeing, drying and banburying and tec. And widely sold to Japan, America, Italy, Brazil, Southeast Asia, Africa and etc. The brand recognition from the market is sufficient to prove that our temp. control system can replace the imported similar products. Belows are our honor clients.
