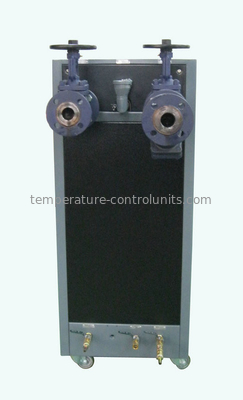

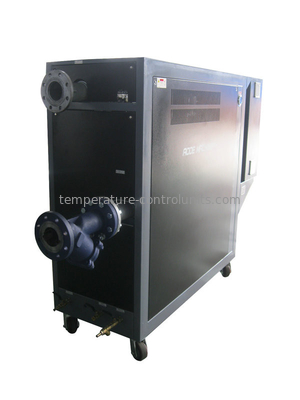

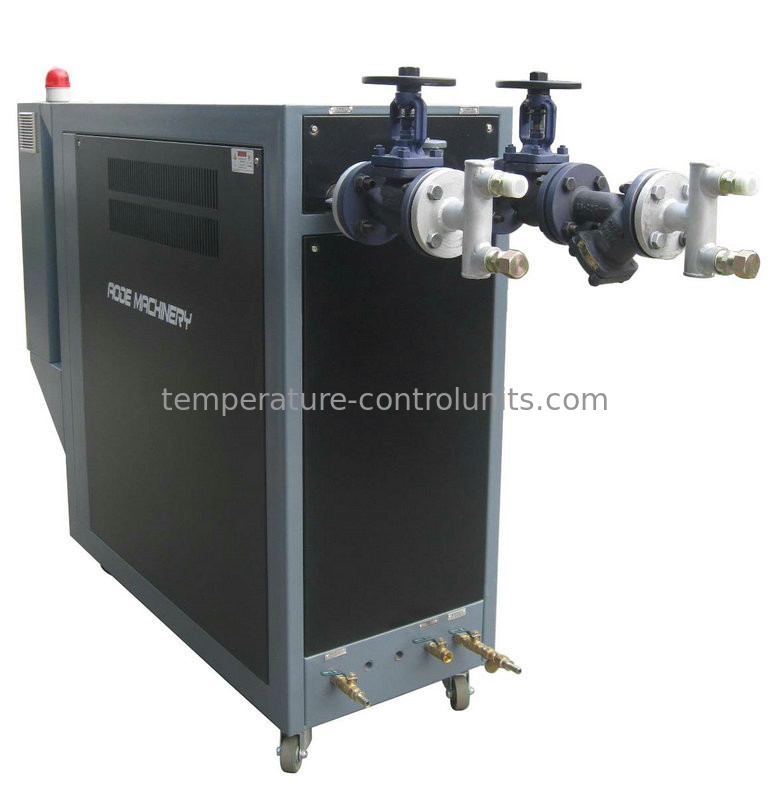

High Density Injection Molding Oil Temperature Control Unit With CE & ISO

High Density Injection Molding Oil Temperature Control Unit With CE & ISO

Quick Detail:

1. Certification:CE & ISO

2. Explosion-proof device(optional)

3. Customizable horsepower and heating power of oil pump

4. Pump pressure:2.0+2.0Kg/cm2

5. Pump power: 1.1+1.1KW

6. Alarm function:pump reversal,Oil shortage, overheating, overload and oil overflow

7. Warranty:1 year

Description:

• Explosion-proof device(optional)
• Thermometer for return oil
• Automatic air-exhausting function after startup
• Return oil back suction of oil pump
• Switchover of heating power
• Isolated electric box for longer services lives of electric appliances
• Negative-pressure system(optional)
• RS485 communication function for automated management(optional)
• Instant cooling return oil shut-down function
• BY-PASS pressure release loop for hot oil
• Customizable horsepower and heating power of oil pump
• SPECK oil pumps(magnetic pumps never suffering from oil leakage) imported from Germany for all series products
• American and European high-temperature pipeline components for all series products
• Brands OMRON, FUJI, TE, LG, MOELLER, ABB and WEST for electric appliance
• Range of temperature control:+25℃-350℃ for incoming water
• Stainless steel integrated pipelines for less pipe resistance and rust
• Control mode: imported microcomputer or PLC(optional)
• Perfect safety protection, fault display, easy repair and maintenance even without professionals

Specifications:

Competitive Advantage:

1. We have the production certification organic heat transfer material heater
2. Strict quality control system
3. Temperature controller: UK West
4. High density heat insulation cotton and aluminum foil
5. Contactor: Moeller, Germany Siemens, ABB
6. Customization thick copper pipe 1.0-1.2

Applications:

Aluminium Alloy: Car accessories

Magnesium alloy: Communication device, navigation

Hot Rolling Machine: Calender Rolls, Wood Presses, Laminating Presses,Molding Presses, Rubber Presses, Jacketed Vessels, Reactors, Heat Exchangers, Mixers, Printing Machines, Asphalt, Vulcanizing Presses.
Die casting,plastic  Injection molding, light guide plates, connectors, Chemical engineering, Shoe materials, Pringting and dyeing, Drying and banburying.

Nowadays, Aode Machinery Co.,ltd continue to uphold the purpose of international standards designs and high quality products, applying ourselves to providing high standard products and whole-journey nanny service. Our products are widely applied in plastic injection molding, light guide plates, connectors, chemical engineering, compression casting, reaction kettles, rubber tires, calendaring, shoe materials, printing and dyeing, drying and banburying and tec. And widely sold to Japan, America, Italy, Brazil, Southeast Asia, Africa and etc. The brand recognition from the market is sufficient to prove that our temp. control system can replace the imported similar products. Belows are our honor clients.
